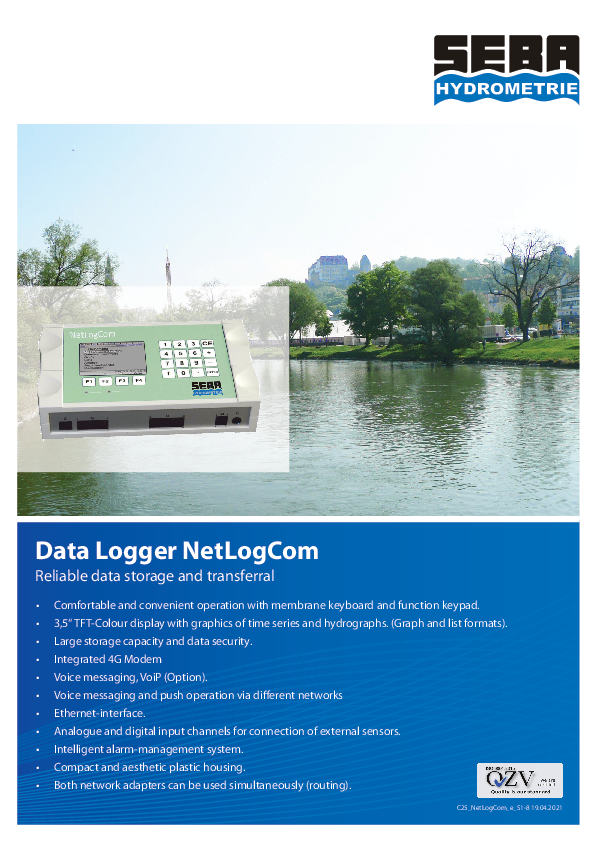

Data Logger NetLogCom (seba-hydrometrie.com)

  • High-Performance Data logger with a total of 100 configurable analogue and digital input channels
  • 2 GB SD Flashcard for approximately 50 Million measurements
  • Compact, aesthetic plastic casing for wall mounting
  • Large 320 x 240 (3,5″) TFT-Color-Display with membrane keypad for easy configuration and operation of the NetLogCom
  • Display of time series in graphical form (hydrograph, list)
  • Integrated measurement and error reporting system including speaker.
  • Integrated 4G Modem
  • Voice-Over IP (VoIP)
  • Voice messaging and push operation via different networks
  • Interface: Ethernet (TCP-IP), 2x RS 232, 2x RS 485, SDI-12, USB-M, USB-S
  • IP-Communications: FTP, SFTP, HTTP, HTTPS
  • Both network adapters can be used simultaneously (routing)



Send a message
Categories , , ,

Share This Items :

Smart: The NetLogCom station manager is equipped with a TFT colour display, keyboard, voice prompter, 4G modem, TCP / IP interface for connecting a DSL router, numerous digital, analog and serial inputs, a generous 2GB flash memory and much more. In short: the perfect data collector, equipped with all the usual communication protocols and formats for modern, up-to-date measurement data acquisition and transmission management 4.0.



Variable:  Individual requirements require tailor-made solutions. For this reason, the NetLogCom can be assembled as a modular system, depending on infrastructure and boundary conditions. Do you need even more analog or digital inputs for the connection of additional sensors? Is a redundancy concept with different transmission paths (mobile radio, fixed network) required? Should the stored data be transferred to an S7 process control system? With the NetLogCom, you will quickly discover the possibilities of an intelligent data management system.



User-friendly: The large TFT colour display and the keyboard make it very easy for the operator to configure the NetLogCom or to retrieve current status information. In addition, time series in the form of hydrographs and lists can be displayed in a clear form on the station manager;

As an alternative, it is also possible to carry out all settings and configurations relevant for the measuring point, in conjunction with a notebook or tablet PC, and with the aid of the “Configuration” operating software.



Powerful: Thanks to the powerful NXP i. MX6 processor, functions and data access on the NetLogCom run separately and can thus be processed in parallel. This also affects the processing of all interfaces; Particularly noteworthy is the integrated alarm management of the station manager in the case of exceeded limit values. Alarms can be sent by voice, SMS, e-mail, FTP, HTTP etc. The user can define how best to set various limit values, alarm channels, alarm groups and up to 32 alarm destinations.

  • Water-level measurement in rivers, lakes, dams, locks; Water-level measurement in flood retention basins
  • Monitoring of thermal plumes, single line monitoring, monitoring of landfill and contaminated sites in conjunction with multi-parameter probes, groundwater monitoring in wells and at large construction sites.
  • Detection of meteorological parameters of weather stations
Operating software:

Configurator

Operating unit:

Notebook, HDA-Pro

Data collection:

RS232 Interface cabel, Networkcable

Data collection software:

MAWIN (SODA)

Sensors:
Digital (SHWP-Protocol):

DS(T)22

PS-Light2-Sensor

Levelsense

MPS-D8/MPS-K16/MPS-PTEC

Analog (0-10V, 0/4-20mA):

SEBAPuls (Radar)

Meteorological sensors

PT100

Impulse Input:

RG50/RG100/TRW

MID, Water counter

RDI/Teledyne:

ChannelMaster

Logger:



Controller:

Triceps 4: XScale, 32-Bit-ARM-v5TE-Processor

Triceps 7: NXP i. MX6 ARM Cortex A9

RTC-IC-real-time clock

Storage capacity:

2GB SD FlashCard for about. 50 Million data measurements

Storage interval:

from 10 seconds upwards

Channels:

max. 100

Measurement routines:

Single value, mid-value, daily minimum-/-maximum, Deltamode

Communications interface:

2x RS232, 2 x RS485, Ethernet (TCP/IP), SDI12, USB, 4G Modem optionally ISDN-or Analog-Modem or VoIP (Option)

Operation:

RS232 interface cable, TCP/IP, Membrane Keyboard, Modem

Input:
digital:

16 Bit (8 x Impulse), BCD, Gray, Binary, Impulse input (Rain)

analog:

5 x 0/4-20mA (oder 3 x 0/4-20mA, 2 x 0-10V), 1 x PT100

Modbus:

TCP/IP, RTU

Protocols:

SEBA SHWP, SEBA-PS-Delta, RDI/Teledyne ChannelMaster PD19, PD0, OTT SLD, Easy Q, Flow2000, MIO, Quantum, level-online

Output:
analogue, digital:

Buscontroller via TCP/IP, Option (25 Ein-/analog-output, digital pro Buscontroller)

Modbus:

TCP/IP

Protocols:

RS232, RS485, Rotor, GS display, display screen Data transmission to Siemens S7

Casing:
Material:

Plastic ABS

Dimensions:

240x138x55mm (lxbxt)

Display:

320×240 (3,5″) TFT-Colour-Display with graphic display of time series (Hydrograph, List) Numerical keyboard with 4 function keys

Protection type:

IP40

Fixing:

Wall-mounted, 19″ Rack (Optional)

4G Modem:
Supported networks:

GPRS/EDGE/UMTS/HSDPA/HSDPA+/LTE

Frequencies:

800/900/1800/2100/2600 MHz (Worldwide)

Antenna:

with magnetic base: 850, 900, 1800, 1900 MHz

Communications:

Push-Protocols: FTP, SFTP, HTTP, HTTPS Push-Format: zrxp, XML Data collection: DDP, XML (TCP/IP)

Alarm:

Speech, SMS, E-Mail

Current supply:

9-24VDC

Operating temperature:

-30°C – +70°C
