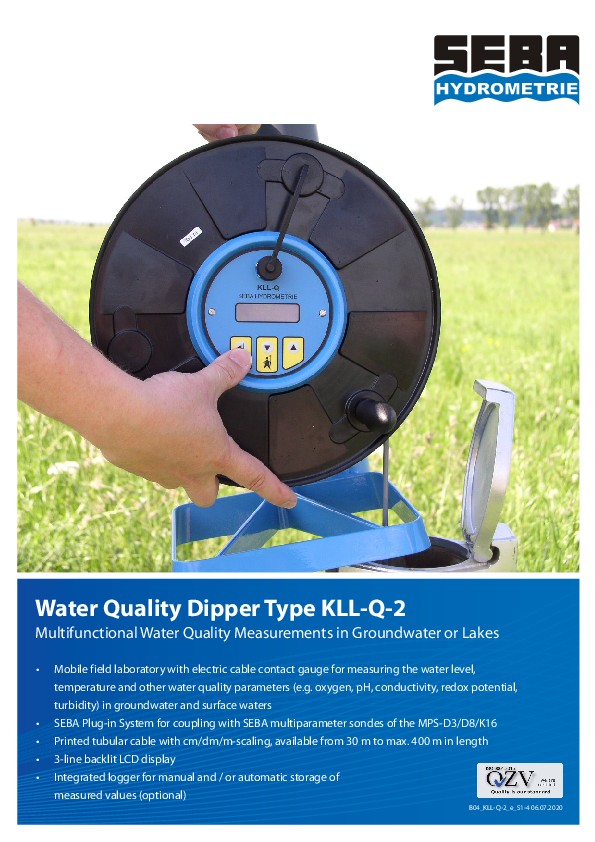

Electric Contact Meter Type KLL-Q-2

  • Mobile field laboratory with electric cable contact gauge for measuring the water level, temperature and other water quality parameters (e.g. oxygen, pH, conductivity, redox potential, turbidity) in groundwater and surface waters
  • SEBA Plug-in System for coupling with SEBA multiparameter sondes of the MPS-D3/D8/K16
  • Printed tubular cable with cm/dm/m-scaling, available from 30 m to max. 400 m in length
  • 3-line backlit LCD display
  • Integrated logger for manual and / or automatic storage of measured values ​​(optional)
Send a message
Categories ,

Share This Items :

Individually configurable:
The KLL-Q-2 can be adapted and tailored to the desired measuring task. The choices are cable drums of varying sizes with cable lengths of 30 to 400 meters and three multiparameter sensors (MPS-D3/D8/K16), which can be equipped with a variety of water quality sensors.

Versatile applications:
The KLL-Q-2 is suitable for the sampling of lakes and reservoirs as well as for monitoring of groundwater measuring points starting from 2″ pipe diameter.

Efficient:
The printed round cable allows an exact lowering of multiparameter probe to the desired measuring depth. Thus, profile measurements can be carried out in a very short time. Optionally, an integrated logger is available which automatically stores all relevant measurement data manually by pressing a key as at predetermined intervals.

Compact and user-friendly:
The KLL-Q-2 with its robust aluminum support frame can be easily transported from one measuring point to another. For operation and display, the user is equipped with a membrane keypad and LCD. Calibration or adjustment of the sensors using the SEBA operating software is done over the integrated RS232 interface with a connected multiparameter sensor ConfigPC.

  • Water quality monitoring in ground and surface waters: groundwater monitoring points, wells, landfills, lakes, reservoirs
Operating Unit:

HDA-Pro

Operating software:

SEBAConfig

Storage of measurement values:

Integrated logger

Data readout:

Interface cable RS232 – USB

Evaluation software:

DEMASvis

Archiving Software:

DEMASdb

Protective bag
Sensor:

Multiparameter probe MPS-D3 type

Multiparameter probe MPS-D8 type

Multiparameter probe MPS-K16 type



Housing

Support frame:

Aluminium

Cable drum:

Shock-resistant plastic

Dimensions:

Depending on cable length

Protection class:

IP54

Keyboard:

3 multifunction buttons

Display:

3-line backlit LCD



Cables

Lengths:

30m/ 50m / 80m/ 100m/ 150m/ 200m/ 300m/ 400m

Material:

PE jacket, printed with cm/ dm/ m scaling, food safe

Accuracy:

<1cm at 100m cable length

Dimensions:

Ø5mm



Logger (option) Controller:

16Bit Flash controller with integrated WatchDog RTC-IC Real Time Clock

Memory capacity:

16 MB (= 1.250.000 Messwerte)

Save interval:

Manually or cycle-controlled by 2min – 99 hours

Channels:

Maximum 32

Measurement routines:

Single value, average value, event clock, Delta mode

Communications
Interface:

RS232

Operation:

Interface cable (USB/RS232)



Communications
Interface:

RS232 (standard)



Outputs:

RS485 (SHWP)



Power supply:

4 x 2V lead-acid batteries, rechargeable



Connection:

SEBA-plug system (stainless steel) for multiparameter probe of the MPS-D3/D8/K-16 type
