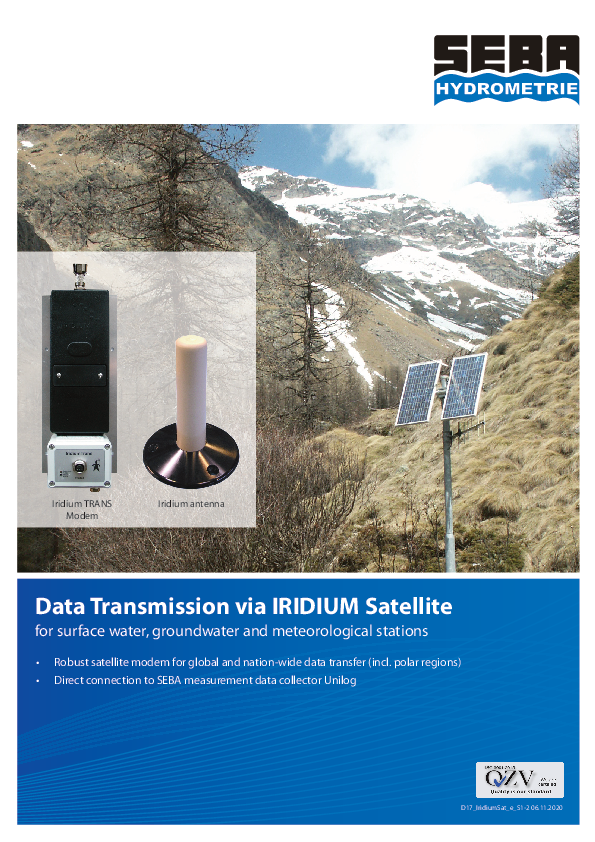

Data Transmission via the IRIDIUM Satellite

Robust satellite modem for global and nation-wide data transfer (incl. polar regions)
Direct connection to SEBA measurement data collector Unilog

Share This Items :

24 hour data availability:
The IRIDIUM satellite communication system currently consists of 66 active satellites enabling a world-wide data transmission by means of low earth orbits, LEO. The availability of data is thus ensured at any time and without time slot reservation.

Reliable:
The data transmission at a rate of 2,400 baud is accelerated by the use of compression codec AMBE (Advanced Multiband Excitation). IRIDIUM-Trans uses this technique, thus turning itself into a modern, reliable and cost-effective data transmission system. To act completely independently of fixed and mobile networks, the use of an additional IRIDIUM modem is recommended for the central call-up system.

Robust, adapted to field work and economical:
The modem is fully adapted to carrying out field work and distinguishes itself by its robust design and low power consumption. Even extreme temperature fluctuations do not pose a problem for the IRIDIUM modem.

  • Ensuring high data availability even in regions without any infrastructure, such as tropical or subtropical regions, deserts, steppes, tundras and polar regions etc.
Antennas:

iridium antenna

Retrieval software:

DEMASole

Evaluation software:

DEMASvis

Archiving Software:

DEMASdb

WEB portal:

SEBA Hydrocenter

Modem:

Satellite Modem (Iridium)

Frequency: 1616 to 1625.5 MHz

Duplex Method:

TDD (Time Domain Duplex)

SIM card type:

SimChip

Antenna impendance:

50 Ohm

Antenna connection:

TNC

Antenna:

iridium antenna

Interfaces:

RS232



Housing
Material:

ABS

Dimensions:

125x100x80 (LxWxH)

Protection class:

IP54

Fastening:

Mounting plate, top-hat rail



Power supply:

10-18 VDC



Power consumption:

0.6W (reception), 7W (sending)



Operating temperature:

-30°C – +70°C
