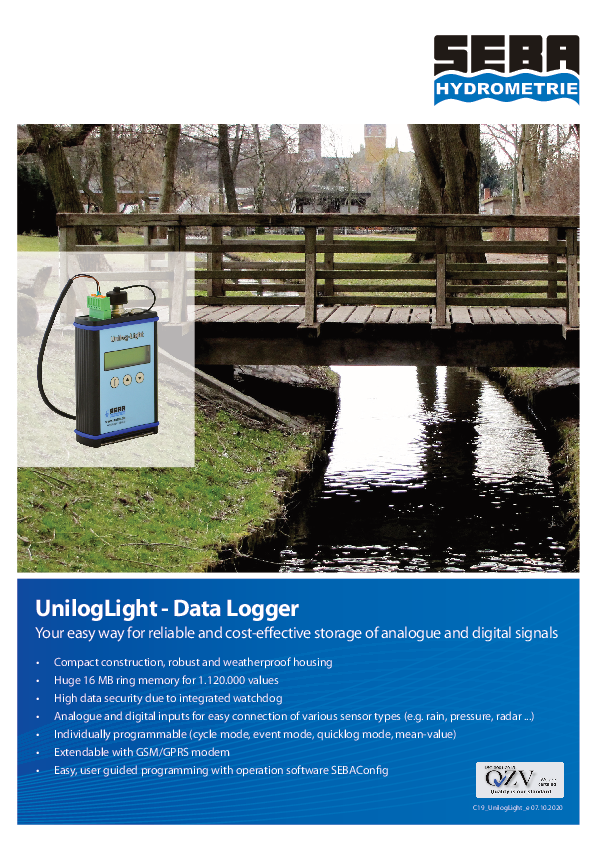

Data Logger Unilog-Light

  • More affordable 1-2-channel data logger in pocket format
  • Robust, weather-proof housing with LCD and three multifunction buttons
  • Variant-specific connectivity of analog and digital sensors:
    • Precipitation measurement with RG50/RG100/TWR: Unilog-Light-R
    • Level measurement with float/counterweight: Unilog-Light-ENC
    • Level measurement with SEBA-pressure probe DS 22: Unilog-Light SHWP
    • Water quality measurement with SEBA multiparameter sensors MPS-D8/K16: Unilog-Light SHWP
    • Various measuring tasks with analog sensors: Unilog Light Analog
    • Various measuring tasks with SDI-12 sensors: Unilog Light SDI-12
  • Large ring memory capacity of 1,120,000 readings
  • Connectivity for external GSM/GPRS modem type ModCom
Send a message
Categories , ,

Share This Items :

Economical:
The new Unilog-Light in pocket format is the inexpensive solution for reliable storage of analog and digital signals.

Optimised:
According to the measurement task, the user has a custom-made Unilog-Light at their disposal.

Efficient:
The Unilog-Light is especially characterised by its low energy consumption as well as by its intelligent power management. Depending on which variant is chosen, the power supply can be provided with an internal 9 V block battery, an external 12 V battery, solar panel or with a 230 V/12 VDC power supply unit.

User-friendly:
Two apps are available for configuration and data read-out of the UniLog-Light. Operating software ConfigPC (Windows) for beginners has an intuitive user interface (Wizard) for various routine tasks. ConfigApp (Android) and BlueCon (our Bluetooth module) are combined to facilitate configuration and data read-out wirelessly with a smartphone or tablet, directly from a data logger.

Modular:
With the GSM/GPRS modem type GSM742 Unilog-Light can be expanded into a remote data transmission system with intelligent alarm management.

  • According to which variant is required: e.g. for precipitation measurement, level measurement, water quality monitoring in landfills, monitoring the discharge of springs, flow measurement or detection of meteorological parameters of weather stations
Operating software:

SEBAConfig (Windows)

SEBAConfigApp (Android)

Operating Unit:

HDA-Pro

HDA Tablet

Data readout:

Interface cable (USB, RS232)

BlueCon (Bluetooth)

RS232

Evaluation software:

DEMASvis

Archiving Software:

DEMASdb

WEB portal:

SEBA Hydrocenter

Sensors:

DST22

Surfloat Sensor 4

SEBA-Puls

RG50/RG100/TRW

MPS-PTEC

MPS-D3

MPS-D8

MPS-K16



Logger
Controller:

32Bit Flash controller with integrated WatchDog

RTC-IC Real Time Clock

Memory capacity:

16 MB (= 1,120,000 readings)

Save interval:

2 min – 99 hours

Channels:

Max. 32 logical channels

Measurement routines:

Single value, Average value, Event clock, Delta mode

Communications
Interface:

RS232 (Standard)

Operation:

Interface cable (USB, RS232)

BlueCon (Bluetooth)

Inputs:

Unilog-Light-R: 1 x pulse (rain)

Unilog-Light-ENC: Encoder input (angle encoders)

Unilog Light Analog *): 2 x analog standard signals (0/4-20 mA, 0-1 V, 0-5 V), 1 x RS485 (SHWP)

Unilog Light SHWP *): 1 x RS485 (SHWP) for digital SEBA sensors

Unilog Light SDI12 *): 1 x SDI-12

* Additional analog/digital inputs are available with RS232 interface, allowing external modem (optional)



Housing
Material:

Aluminium

Dimensions:

143x85x38 mm (LxWxH)

Display:

3-line LCD display

Keyboard:

3 multifunction buttons

Protection class:

IP65

Fastening:

Retaining clip



Power supply:

Unilog-Light-R/ENC: 9 V block battery 6LR61 alkaline manganese (standard), 9 V block battery 6AM6 Lithium (option)

Unilog Light Analog /SHWP /SDI-12: 12 VDC, external



Operating temperature:

-40 °C – +70 °C
