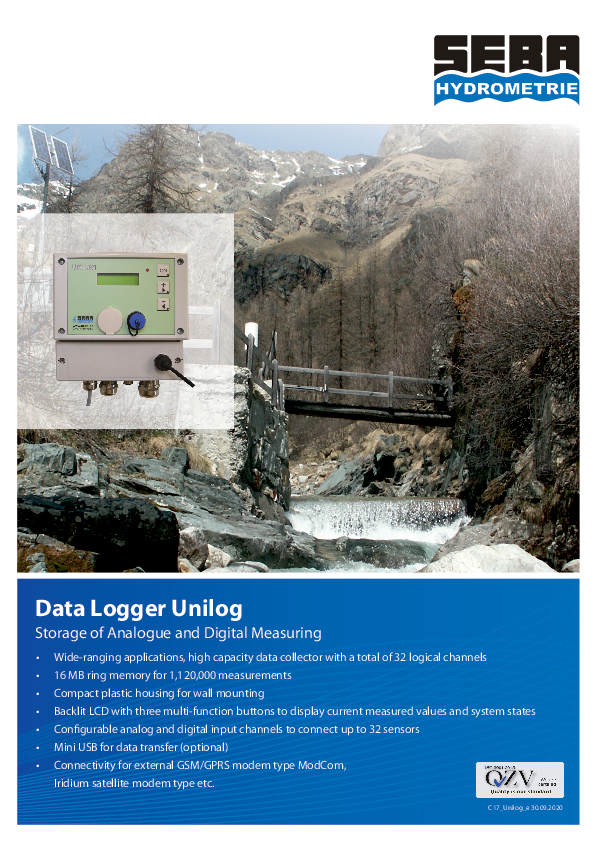

Data Logger Unilog

  • Wide-ranging applications, high capacity data collector with a total of 32 logical channels
  • 16 MB ring memory for 1,120,000 measurements
  • Compact plastic housing for wall mounting
  • Backlit LCD with three multi-function buttons to display current measured values ​​and system states
  • Configurable analog and digital input channels to connect up to 32 sensors
  • Mini USB for data transfer (optional)
  • Connectivity for external GSM/GPRS modem type ModCom, Iridium satellite modem type etc.
Send a message
Categories , , ,

Share This Items :

Efficient:
The Unilog is especially characterised by its low energy consumption as well as by its intelligent power management. The power can be supplied (depending on the infrastructure) with a 12 V battery, solar panel or an external 230 V/ 12 V DC power supply unit.

Variable:
Depending on the measurement task, up to 32 logical channels can be managed by the logger. So, for example, it is possible to connect 16 digital DS(T) 22 type SEBA-pressure / temperature probes, or three MPS-D8 multiparameter sensors via the internal RS485 interface. Using an external A/D converter, up to 32 analog sensors can be connected.

Smart:
An alarm management system in Unilog monitors all of the channels. When exceeding predefined thresholds, (for instance during a flood) the measurement intervals can be automatically shortened. Furthermore, when combined with an external modem, shorter transmission intervals (Dynamic Push) are possible. Additionally, upon request, short messages (SMS Alert) can be sent to up to eight receivers.

User-friendly:
Two APPs are available for configuration and data readout of UniLog. Operating software ConfigPC (Windows) for beginners has an intuitive user interface (Wizard) for various routine tasks. SEBAConfigApp (Android) and BlueCon (our Bluetooth module) are combined to facilitate configuration and data read-out wirelessly with a smartphone or tablet, directly from a data logger.

  • Level measurement in watercourses, lakes, reservoirs
  • Filling level measurement in flood control reservoirs
  • Monitoring of thermal plumes, discharge monitoring
  • Supervision of landfill and waste disposal sites in connection with multi-parameter sensors
  • Groundwater monitoring in wells, at field measurement and construction sites
  • Acquisition of meteorological parameters from weather stations
Operating software:

SEBAConfig (Windows)

SEBAConfigApp (Android)

Operating Unit:

HDA-Pro

HDA Tablet

Data readout:

Interface cable (USB, RS232)

BlueCon 2 (Bluetooth)

RS232

Evaluation software:

DEMASvis

Archiving Software:

DEMASdb

WEB portal:

SEBA Hydrocenter

Sensors:

DS(T)22

SEBAPuls

LevelSense

Surfloat Sensor 4

PS-Light-2 Sensor

MPS-PTEC

MPS-D3

MPD-D8

MPS-K16

RG50/RG100/TRW

Meteorological sensors



Logger
Controller:

32Bit Flash controller with integrated WatchDog

RTC-IC Real Time Clock

Memory capacity:

Internal: 16 MB (= 1,120,000 measurement readings)

external: 16GB USB Flash Drive (= 10 million readings)

Save interval:

2min – 99 hours

Channels:

max. 32

Measurement routines:

Single value, average value, event clock, Delta mode

Communications
Interface:

RS232 (standard), USB, Ethernet interface (option)

Operation:

Interface cable (USB/USB-Mini-RS232)

BlueCon 2 (Bluetooth)

Inputs:

Digital: 1 x RS485 (SHWP) for digital SEBA sensors, 1 x pulse, 2 x Contact, 2x RS232/RS485 (Optional)

Analog: 8 x 0-1 V, 0/4-20 mA expandable to 32 analog signals with external A/D converter

Outputs (Option):

Digital: SDI-12 or MODBUS

Analog: 0…1/5 V or 0/4…20 mA

Power supply:

12 V DC

Housing
Material:

polycarbonate

Dimensions:

166x185x105 mm (lxwxh)

Display:

3-line LCD display

Keyboard:

3 multifunction buttons

Protection class:

IP65

Fastening:

Wall mounting, top-hat rail

Operating temperature:

-40 °C – +70 °C
